Fabric RTI 101: Handling Backpressure

In any real-time data system, there’s a point where the incoming event rate can exceed what the system can process. This condition is known as backpressure.

Backpressure can occur for a few reasons — a sudden spike in data volume, slow or overloaded consumers, or limited throughput in one part of the pipeline. If it’s not handled properly, it can cascade through the system, eventually causing delays or even a complete stall in event processing.

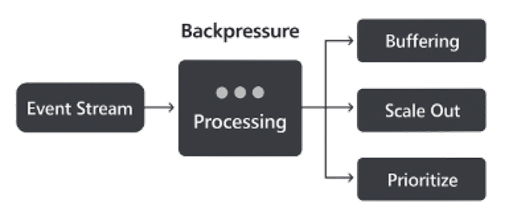

There are several strategies to handle backpressure effectively.

The first is buffering. By introducing temporary storage — for example, using queues or durable event hubs — you can smooth out short bursts of high activity. Buffers don’t eliminate the problem, but they give downstream components time to catch up.

The next approach is to scale out consumers or processing nodes. When event volume increases, adding parallel processing capacity allows multiple consumers to share the workload. Partitioned event streams make this approach more effective, since each partition can be processed independently.

For longer-term or persistent overload conditions, you may need to prioritize certain events. In some cases, it’s acceptable to drop low-priority or redundant events to maintain system responsiveness. For instance, telemetry systems might sample events instead of processing every single one when volume peaks.

Monitoring plays a key role here — metrics such as queue length, consumer lag, and end-to-end latency can help identify when backpressure is forming.

The overall goal is to prevent a total stall. A well-designed system should degrade gracefully under heavy load — slowing down processing or dropping nonessential data instead of failing outright.

Handling backpressure is about maintaining stability and responsiveness when your real-time pipeline is under stress.
