Fix - Issues when Installing SSMS on an Offline Virtual Machine

Fix - Issues when Installing SSMS on an Offline Virtual Machine

I recently had to install SQL Server Management Studio (SSMS) offline on a virtual machine. The machine was running Windows Server 2022.

I struggled for many hours, and came to the conclusion that this should not be as difficult as it was. I hope this information helps someone else.

I followed the instructions provided for offline installation from here: Create an Offline Installation of SQL Server Management Studio . Erin Stellato did a good job in that article and that almost could have worked but there were a few issues.

VS Installer Silently Closing

I started by using the command:

vs_setup.exe --layout

That downloads the required files for an offline install. Importantly, if you then move these files to the offline location, it won’t just install. Erin had a note on that page about the installer silently closing if you didn’t have the certificates installed. I missed that part when I first read it. I’ve suggested that the page needs a troubleshooting section with the issue as a header, as it doesn’t currently win the SEO battle.

But even after I did install them from the certificates folder, it still was closing silently. I ended up writing a program that followed the certificate chains that were required, and it wasn’t just those three that were needed. I found that these three certificates were also needed:

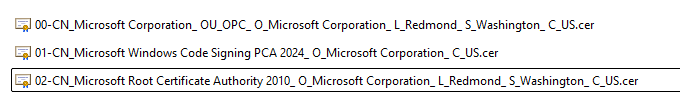

SSMS Install Missing Certificates

I’m not sure what the official source of those is, but I found them somewhere and installed them. And once I installed those, the setup would continue to run.

ISO and long file names

Next issue I ran into was the use of very long file names. I needed to create an ISO image with the installation files, so I could attach it to the VM for installation.

I started by creating a program that would copy the downloaded files into an ISO image.

After creating it, and attaching it, the install was failing in all sorts of weird ways. But when I checked the logs, there were files apparently missing. But I checked they were there in my source.

That took me a while to work out.

The issue is that the ISO standard doesn’t support file names longer than 256 characters. And the installer for VS/SSMS has files with names longer than 256 characters.

So I needed to change that plan. Zip files can hold longer names, so what I did was to zip the folder and put the zip into the ISO image rather than the files.

And then it was working.

Summary of process

So for a summary of the process I ended up using, it’s:

Create the installer

  1. Use the vs_setup.exe –layout option to download the files.
  2. Add the extra 3 missing certificates into the certificates folder
  3. Zip the folder holding all the downloaded files
  4. Create an ISO with the zip file as the only file.

Installing

  1. Mount the ISO with the zip
  2. Extract all the files from the zip into a local folder
  3. Import all 6 certificates from the certificates folder
  4. Then use the vs_setup.exe –noWeb option to install.

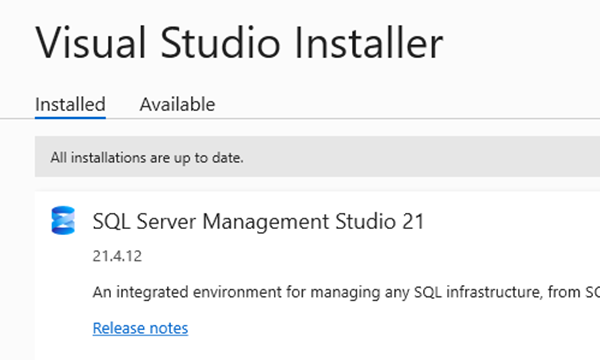

  5. VS installer runs, and I can install SSMS like normal.

I really hope that helps someone else get this done quickly.

2025-10-06
